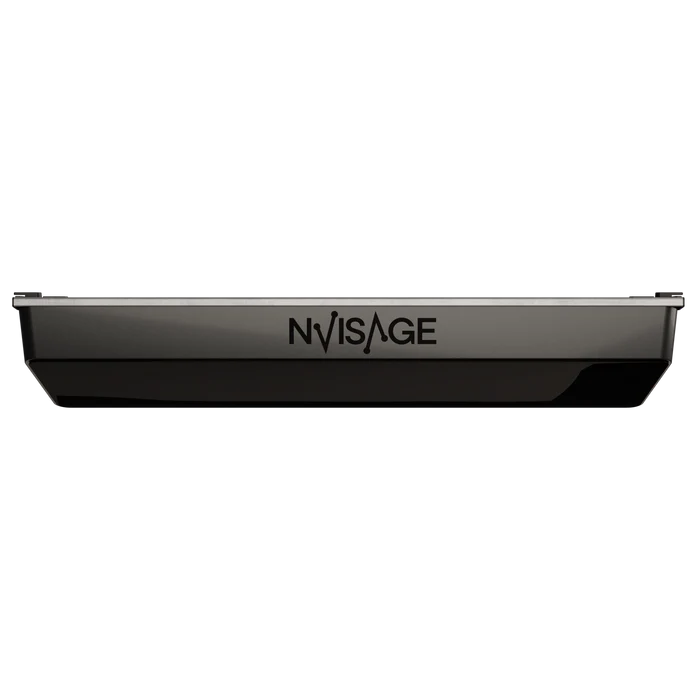

NVISAGE N1 Launch Monitor

The NVISAGE N1 Launch Monitor is an affordable, highly accurate overhead device loaded with advanced features.

Transforming the way golfers visualize their ball flight on the range or course, the NVISAGE N1 integrates effortlessly with third-party golf simulator software like GSPro and E6 Connect.

With specially designed balls made specifically for the NVISAGE N1, golfers can trust in the accuracy of their data to better assess their performance. Whether you're practicing at the driving range or exploring virtual golf courses and interactive games with popular simulators such as GSPro or E6 Connect, the NVISAGE N1 offers a dynamic experience.

What's Measured?

Product Features

Overhead Launch Monitor Design
The NVISAGE N1 is built to be mounted overhead, keeping the launch monitor clear of your swing path. This configuration maximizes your practice space, allowing for uninterrupted sessions that help improve your skills. Use the NVISAGE Frame Mount to easily attach the device to most simulator enclosures.

Capture Every Detail with High-Speed Cameras
Gain a deeper understanding of your swing with the NVISAGE N1’s advanced sensors. Featuring high-speed cameras and the powerful PhysX 6D Physics Engine, this launch monitor precisely captures every detail of your swing, enhancing your golfing experience.

Spacious Hitting Area
With a 24-inch deep by 20-inch wide hitting zone, the NVISAGE N1 provides golfers with plenty of room to tee up the ball. This not only improves ease of use but also allows for flexible mounting options, even in smaller spaces.

Instant Performance Insights
Real-time feedback is key to efficient practice. The NVISAGE N1’s multi-camera setup ensures precise data capture from multiple angles, giving you a detailed analysis of your performance as you go.

Seamless Third-Party Integration
A standout feature of the NVISAGE N1 is its compatibility with third-party golf analysis and simulation software. Whether you prefer GSPro or E6 Connect, you can choose the software that works best for you, gaining valuable insights without being locked into proprietary software.

What's Included

• Launch Monitor Sensor

• Mounting Plate
• Calibration Board
• Power Adapter with Cable
• Ethernet Cable
• Mounting Screws
• Leveling Tool
• 12 Premium Marked Golf Balls

Product Specifications

• Dimensions: 21.8"L x 6.9"W x 4.9"H
• Weight: 19.2 lbs
• Mounting Location: Overhead
• Mounting Position: 9-10ft overhead, 2ft in front of tee
• Hitting Zone: 24” x 20”
• Cameras: (2) 2,000 FPS cameras
• Compatibility: GSPro, E6 CONNECT

Software Options:The NVISAGE N1 requires golf simulator software and is compatible with:

• GSPro: Immerse yourself in one of the most realistic golf simulators on the planet. GSPro Golf Simulator Software boasts incredible 4K graphics, true-to-life ball flight and roll, and a vibrant community. Practice shots on downloadable courses, compete in skills tests, or play matches locally and online on a selection of over 300 courses.
• E6 Connect: Utilize E6 with launch monitors for teaching, training on the driving range, participating in leagues and online events at commercial facilities, or enjoying casual games at home with friends and family.

Product Requirements

PC Requirements

Third-party software dictates the minimum PC requirements. We advise checking the recommended specifications for your chosen software.

• Intel i5 8400 (Not compatible with Apple iOS or Mac OS)
• 8 GB RAM
• GeForce GTX 1060 (For AMD: 3rd gen Ryzen or higher, AMD Ryzen 3600X or higher, AMD 2700 not compatible)
• Windows 10 (64 bit) Version 1803 or higher
• Ethernet Port Mandatory

Space Requirements

Install the NVISAGE N1 at a height of 9-10 feet above your hitting surface and position it 2 feet in front of the hitting area. Following our suggestion to hit from a minimum distance of 10 feet from your impact screen, this situates the NVISAGE N1 approximately 8 feet away from the impact screen.
